PDC09 Day 1 - SketchFlow

Today I attended a session on a product called SketchFlow, part of Expression Blend 3, which for us Microsoft Gold Partners is part of Expression Studio 3 on MSDN. SketchFlow is a tool that uses WPF and helps you quickly prototype, gather feedback, and document for projects that will use WPF or Silverlight as the UI. Prototyping, in general, helps you do design up front leading to more accurate estimations, share ideas quickly, get feedback quickly, and fail faster when you are going down the wrong path.

We recently used a tool from Balsamiq to produce mockups for a new project, which was very helpful in crystallizing design and gathering feedback from our client, as well as providing our UI developers with a starting point.

I’ve no doubt that SketchFlow is going to be our new prototyping tool – not only does it allow us to do all of the above, but it actually creates an application in WPF.

One of the great features of SketchFlow is that you are using real WPF and the prototype is a real application and not just screen shots. There all features built right in to allow folks to provide real feedback directly in the prototype, and ways for you to collect and review that feedback.

SketchFlow allows to use Sketch styles to give your prototype a “draft,” or work-in-progress, look and feel – this is actually important to get the right feedback from people at a higher level instead of letting people get bogged down in details like button size and color, etc.

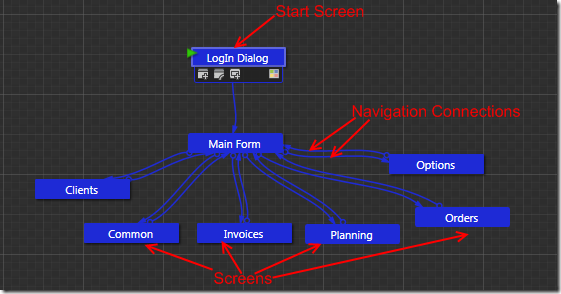

In SketchFlow you create a high level map of the forms/windows that you are going to use in your application and then connect them together to create a flow. Then you can select any of those to mock up a particular form.

You can also quickly add sample data to your application by defining data and filling it in right from within the application, or by connecting it to a database. You can drag and drop to create lists using your sample data, and manipulate the controls for how the data is displayed right in SketchFlow. You can put C# code behind various actions and events in the prototype as well, to simulate various aspects of the application you are prototyping, including storing global state information to keep track of from one screen to another.

Once again SketchFlow uses WPF, so you can easily use it as the basis for a WPF application, and with some limitations you can use it for Silverlight as well. Although you can certainly use it to prototype other application types such as web sites, it will not generate ASP.NET etc. – the output is WPF or Silverlight only.

SketchFlow also has a cool feature to allow you to export your prototype to Microsoft Word, creating a table of contents and including all of the screen shots – this will certainly help create documentation much more quickly (we copied and pasted about 40 images in a recent specification document, this will automate that task in future specs for us in 1 click!).

After attending the SketchFlow session yesterday I immediately installed Expression Studio 3, and I am getting ready to use this with our designer for prototyping the front end of new project I have coming up.

PDC09 Day 1 – Data-tier Application projects in VS 2010

I made it back to PDC this year – although I wasn’t able to get in early to attend any preconference workshops. After getting up a 4am and catching a 6am flight to LAX, it was the LA traffic that got me in 45 minutes after the keynote started. I hear I didn’t miss too much, mostly just Ray Ozzie talking about cloud computing.

The first session that I attended was about a new project type in Visual Studio 2010 called a Data-tier Application. It doesn’t replace the existing Database Projects (e.g. with VS.NET 2008 Database Edition + GDR2) – coming out of the session, my understanding is that it is an alternative project type with some really cool features, but intended for “smaller” projects (“departmental” vs. “LOB/Mission Critical”, or “under 1000 objects”). I’m not quite sure what to make of that – based on some commentary I believe that it has a couple limitations but also the intended audience is different.

First off, here are some of the really cool features discussed. I imagine that some of these features apply to all SQL edited in VS.NET 2010 and not just this new project type:

• Intellisense when editing SQL in VS.NET
• Full integration with the VS.NET 2010 debugger – e.g. when debugging a stored procedure, you can add watches and view the call stack. I hope you can do more – look at a temp table for example, or see what the results of a query might be, but that wasn’t specifically discussed. In any case this is a big leap forward.
• “Compile” errors and warnings, for example, warning if you use “select *” in a view or stored procedure.

The following cool new features are definitely specific to the new project type only:

• Deployment from either VS.NET or SSMS using the “dacpac” output
• Migration to new schema during deployment without writing any migrations scripts – it looks at the old schema, the new schema, and “makes it so”! How cool is that?!
• When you deploy the dacpac using something called a Control Point, you can get a really cool dashboard in SQL Server that gives you usage statistics and other interesting information about your database

Sounds too good to be true?

Here are the “gotchas,” as far as I can tell, for the Data-tier Application project:

• It only works with SQL 2008 R2, which is still in CTP (not released officially yet)
• It is intended for “departmental” databases
• “up to 1000 objects” was mentioned
• only a subset of T-SQL is supported
• limitations to the ability to perform automatic migrations when changes are made
• other? not clear
• It is not yet released… I’m sure it’s leveraging the years of experience leading up to the GDR2 of the database edition, but that was a long and painful road – anyone who’s run into a bug in VSDB that blocked a deployment can relate to this fear

Bottom line: it sounds very promising with some great productivity features and general advancements in the managing database development, but when it comes to the new project types I would proceed with caution and have a backup plan (such as switching to the tried and true database projects).

Accessing a remote network via VPN on a Virtual Machine

I have Windows 7 64-bit which means I can't use the Cisco VPN Client (hey Cisco, if you are listening, please give us a 64-bit Windows 7 compatible version of your IPSec client!), even though I have several clients who's hardware requires it -- so I bought NCP’s Universal IPSec VPN Client as a replacement and it has worked really well. That is, until I needed to connect to a new client’s network using SonicWall. I couldn’t get NCP to work with the SonicWall, so I installed a Virtual Machine (I still use Virtual PC 2007 SP1 since Windows Virtual PC is still in beta and causes my HOST to crash with the BSOD) with Windows XP on my Windows 7 laptop. I installed the SonicWall client on there, and I am able to connect to their network from the VPC.

However, accessing my client’s network only from the virtual machine is inconvenient -- I can't use SQL Management Studio or VS.NET Database Edition to connect directly to a database on my client's network because all those tools are installed on my host machine, and I really don’t feel like reinstalling them all onto a bloated virtual guest.

I heard from a colleague about the possibility of routing traffic through the VPC guest machine from the host, but I had trouble finding a specific guide to doing this. The good news is that I finally got it working, and I am about to tell you how!

There are of course security considerations (you are essentially creating a path of connectivity between two networks, so malicious software may be able to spread, etc.), so please use your best judgment as to when and how to make use of this.

Here's what I did:

1. Install a Loopback Adapter on the Windows 7 host OS (Add Hardware or run HDWWIZ.EXE, select “manual”, “network interface”, “Microsoft Loopback Adapter”...)

2. Configure the loopback adapter to use a static IP 192.168.0.2 / 255.255.255.0 (leave everything else blank -- no gateway etc.)

3. With the XP guest OS shutdown, use VirtualPC to change the settings so that it has two Network Adapters: the Loopback Adapter that you just added and Shared Networking (or whatever other NIC you want to use for the XP VPC to connect to the Internet).

4. Boot up the XP guest OS. I'm assuming you've already installed the VPN software (SonicWall in my case). If not, install it and make sure it can connect.

5. Change the Loopback adapter on the XP VPC to a static IP 192.168.0.1 / 255.255.255.0 (leave everything else blank -- no gateway etc.). You may need to turn off the firewall on this NIC. Ping the host (192.168.0.2) from here, and vice versa, to make sure everything is working.

6. In Network Connections on the XP VPC, open Properties for the VPN's NIC and turn on Internet Connection Sharing. Set the "Home Networking Connection" the Loopback Adapter. This will force its IP to 192.168.0.1 which is why I chose 192.168.0.2 for the host machine. Use Settings to select the services that should pass through (Remote Desktop is on by default).

7. On the host (Windows 7 in my case), you need to add routes for the specific IP addresses in the VPN network that you want to access. I needed to get a machine at 192.168.8.88, which is the SQL Server on the network I am VPN’ing into. I created AddRoute.bat with the command "route add 192.168.8.88 MASK 255.255.255.255 192.168.0.1" and put a shortcut to that in my Quick Launch. Run that command (as an administrator).

Go to the XP virtual machine and connect to the VPN. Now go back to the Windows 7 host OS and you should be able to Ping the destination machine, in my case "ping 192.168.8.88". If this works, celebrate! Now you'll be able to Remote Desktop, connect to SQL Server, use File Sharing, etc.

There are some pros and cons to using this method. On the downside, you don’t have DNS and you do have to route to each IP address explicitly. On the plus side, you can get to a couple remote machines on one VPN and you could even VPN into another network (like your corporate headquarters) from the host OS at the same time.

One other thing to note -- before I tried the ICS method, I had enabled IP forwarding in the XP VPC by setting the IPEnableRouter registry setting (see http://technet.microsoft.com/en-us/library/cc962461.aspx). I was able to verify with Network Monitor that the requests were indeed re-broadcast to the VPN interface, but it was ignoring them - presumably because they came from another IP address. I didn't turn that setting back off, so I can't confirm that isn't required for all this to work.

Another note – I tried this with the Cisco VPN client on the guest OS and it did not work. I’m not sure why I could get it to work with SonicWall and not Cisco, so your mileage may vary. Please do comment if you have anything to add on this topic.

Originally I did all this with Vista 64-bit as my host. When I upgraded to Windows 7, it deleted my Loopback Adapter and I had to re-add it, but all the settings came back when I did so.

Finally, there may be better solutions out there. I read that with Windows Virtual PC you can, say, run the Cisco VPN Client from the XP virtual machine as a program from the host OS and use it to connect the host OS to a VPN. That’s a pretty cool workaround to a lame problem (Hey Cisco, how about adding 64-bit support to the IPSec VPN client?! Sure, I’d rather use SSL VPN, but I don’t have control over what my clients’ IT departments support!). On that note, I’ve gotten reports that the free Shrew Soft VPN Client works well under Vista and Windows 7 64-bit but I haven’t personally tried it yet. At one point I had a solution using vpnc on cygwin working on Vista, but it stopped working and I never got it going again.

Dependency Analysis of .NET and SQL Server Applications

Recently I starting making some small updates to a very cool dependency analysis application that I designed last year. The basic premise is to be able to trace dependencies from the database up through the user interface or vice versa in order to answer questions such as, if we change table XYZ, what stored procedures and ASP.NET forms will be affected?

The application is actually very good at answering those questions. Field level analysis was more difficult to achieve, so left that out, but at the object level (table/view/proc/class/form) it works pretty well.

I'll describe here, at a high level, the approach I took for each type of data. Let me know if you are interested in code samples for specific implementations!

To analyze .NET, I analyze the actual assemblies using disassembly and reflection. This was tricky but very do-able. Essentially I grab a copy of all the assemblies used by an application and load them "for reflection only" into a separate AppDomain. I gather some dependencies by looking at the types references in member signatures (using reflection) as well as referenced in code (using the disassembler). I used Lutz Roeder's .NET Reflector for the disassembler (http://blog.lutzroeder.com/), which RedGate now has available for free (http://reflector.red-gate.com/).

Also, on the .NET side, I parse configuration files for connection strings and I have "framework" specific code to look for particular attributes or other means that various projects I am analyzing have used to map .NET code to database objects.

To analyze SQL Server database schema, we used the RedGate tools and parsed the xml output. To analyze SSIS packages, we used the SQL Server 2005 Metadata Toolkit (which is actually on codeplex at http://code.msdn.microsoft.com/SqlServerMetadata/, contrary to what the download link at Microsoft http://www.microsoft.com/downloads/details.aspx?FamilyID=182bd330-0189-450c-a2fe-df5c132d9da9&displaylang=en says.).

To analyze stored procedure, functions, and views T-SQL code for dependencies, we used http://www.sqlparser.com/.

The basic idea is to record the objects I find and the relationships between those objects, and then provide ways to explore the data. I came up with a system to record two dimensions, or types, of relationships -- "contains" (e.g., a database contains a table) and "uses" (e.g. a stored procedure "uses" a table, or a .NET class "uses" a stored procedure, etc.).

Normalizing the Day of the Week in SQL Server

There is a very interesting in article in SQL Server Magazine about normalizing the day of the week -- this is very relevant if you need to write code that performs business logic based on, say, Fridays, and you want that code to work properly no matter where in the world the SQL Server is installed:

Normalizing the First Day of the Week, September 2009
http://www.sqlmag.com/Articles/ArticleID/102470/102470.html?Ad=1

Capturing StandardOutput AND StandardError from a Process

I recently revived a program I had written to do an automated build and deploy of a solution containing a Visual Studio Database Edition project as well as a client UI in WPF. The build program runs a bunch of command-line programs, capturing all the output along the way and keeping track of errors, etc. When I was going through the code, I noticed a bug. I am using ProcessStartInfo and Process and I thought I was capturing both StandardOutput and StandardError but I wasn’t. My code looked like this:

      psi.UseShellExecute = false;
      psi.RedirectStandardOutput = true;
      psi.RedirectStandardError = true;
      Process p = Process.Start(psi);
      string output = p.StandardOutput.ReadToEnd();
      string error = p.StandardOutput.ReadToEnd();
      p.WaitForExit();

So I “fixed” the code so now it looked like this:

      ...
      string error = p.StandardError.ReadToEnd();
      ...

But when I ran it, one of the programs seemed to hang forever. I was able to determine that the program did in fact finish, and was actually my code that hung forever. It turns out that if you use ReadToEnd() on both StandardOutput and StandardError, you can reach a blocking situation that hangs your code. This is even documented on MSDN here:

“A deadlock condition results if the parent process calls p.StandardOutput.ReadToEnd followed by p.StandardError.ReadToEnd and the child process writes enough text to fill its error stream. The parent process would wait indefinitely for the child process to close its StandardOutput stream. The child process would wait indefinitely for the parent to read from the full StandardError stream.”

This is exactly what was happening in my code. I was up until 4am updating the Build program, and at this point I wanted a quick solution. The MSDN documentation hinted at the solution (asynchronous threads) but did not provide code outright. I did some searching on the Internet and found some solutions out there, but they were all much heavier than I wanted. I wanted something simple, preferably just a few lines of code and very modular, so after I couple hours of sleep and some coffee, I came up with a solution. First, I created a very simple class, which could be called from a new Thread, to capture the output of a stream:

  class MyStreamReader
  {
    StreamReader _sr = null;
    string _text = null;
    public string Text { get { return _text; } }

    public MyStreamReader(StreamReader sr)
    {
      _sr = sr;
    }

    public void Go()
    {
      _text = _sr.ReadToEnd();
    }
  }

Then I used that class to capture the standard error and standard output from my newly launched process, as follows:

      ProcessStartInfo psi = new ProcessStartInfo(commandToRun);
      psi.UseShellExecute = false;
      psi.RedirectStandardOutput = true;
      psi.RedirectStandardError = true;
      Process p = Process.Start(psi);

      // Create my objects to capture output asynchronously
      MyStreamReader msr_stdout = new MyStreamReader(p.StandardOutput);
      MyStreamReader msr_stderr = new MyStreamReader(p.StandardError);

      // Create the thread objects to run the code asynchronously
      Thread t_stdout = new Thread(msr_stdout.Go);
      Thread t_stderr = new Thread(msr_stderr.Go);

      // Launch both threads
      t_stdout.Start();
      t_stderr.Start();

      // Wait for both output and error streams to finish
      t_stdout.Join();
      t_stderr.Join();

      p.WaitForExit();

      // retrieve the output and error text
      string output = msr_stdout.Text;
      string error = msr_stderr.Text;

      Console.WriteLine(output);
      Console.WriteLine(error);

I tested out my new code now everything works properly – now I just need to thank the developer who checked in the post deployment scripts that caused the errors, otherwise I might not have caught this problem to begin with!

Opening a Visual Studio Solution from a Source Control Repository

Whether you are using a new machine that you have just setup, or a new developer is joining the project, the situation often comes up where a Visual Studio solution or project is already in source control and now you want to open it in Visual Studio and have all the source control bindings work properly.

This seems like such a simple task, but over the years I have seen people lose hours of productivity running into problems getting the bindings to work properly. Over the course of those years, I have found the following steps to work really well. I usually use SourceGear’s Vault product, but these general steps apply to just about any source control system that integrates with Visual Studio, including Visual SourceSafe, Team Foundation Server, and Ankh SVN.

You need to get the bindings to source control setup for a solution on your local development machine once, and then after that you can easily just click on the SLN file or open the solution from Recent Projects in Visual Studio, and the bindings will work properly (even using the correct source control plug-in if you use multiple plug-ins).

The following are the steps for the one-time initialization process – or re-initialization if your bindings have somehow gone awry. These steps assume that you do not have the source control program (if it has a standalone client) oepn or Visual Studio open when you start the steps.

1. Open your source control client outside of Visual Studio

2. Set the working folder, if it is not already set, at solution level or higher, make sure there are no overrides lower in the folder tree

   1. Especially for Vista or Win7, make sure the working folder doesn't require admin rights – e.g. in C:\Users and not C:\ etc.
3. Get Latest Version on Solution, in Overwrite mode (this might be called “check out” in SVN, but we are just retrieving here, not locking).
4. Open Visual Studio
5. Tools/Options - Choose source control client to be the appropriate source control client, e.g.:

6. Open <MySolution>.sln from Source Control using File -> Source Control -> Open from Source Control (note that the exact command name varies by source control plug-in, but you get the idea)
7. Verify that entire solution loaded correctly
8. Close Visual Studio
9. Close your source control client, if you had one open
10. For now on, open solution by opening <MySolution>.sln on your hard drive. (then it won't matter if you set your default source control provider to something else, because the <MySolution>.sln is bound to the one you chose above)

VSDB: Schema Compare and “Update Action” Override Persistence

On my team, we frequently use the Schema Compare tools to push local database changes into the project (and then into source control). In the process, we often override the Update Action to Skip for items which correspond to changes someone else has made to the project since we last did a deploy.

For example, let’s say Bob does a deploy and then changes his local database. In the meantime, Jane adds a new stored procedure to the project. Now, when Bob does a Schema Compare, he will not only see his changes, but the Schema Compare will suggest Dropping the new stored procedure that Jane created since it does not exist in Bob’s database. Bob switches his view to Non Skip objects and notices this, and changes it from Drop to Skip. Well, the next time Bob opens that same Schema Compare, this same stored procedure will be skipped again – but Bob may want to get a “fresh” schema compare and see all differences (and thus “Non-Skip” items). Bob could create a new Schema Compare, but then he would have to carefully select all the Options again….

When you open a Schema Compare session and you choose to override an "Update Action" – e.g., SKIP one of the proposed updates, it actually remembers that overridden setting for that object even when you refresh, or save and re-open, the Schema Compare. This could actually be really useful at times but it can also cause chaos and misery if you don't know about it or have forgotten that you are overriding something to Skip that you actually want to update now.

These Update Action overrides are persisted in the .scmp file. If you want to clear them all, you close the schema compare and then open the .scmp file in a text editor (such as the Visual Studio XML Editor):

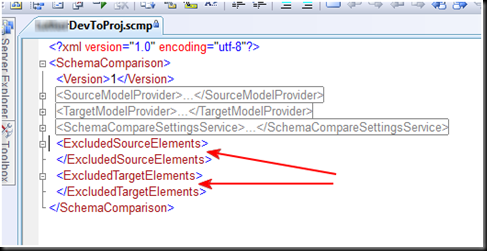

Then delete all the nodes between the <ExcludedSourceElements> and </ExcludedSourceElements> as well between <ExcludedTargetElements> and </ExcludedTargetElements> (note that below I collapsed the SourceModelProvider, TargetModelProvider, and SchemaCompareSettingsService nodes for brevity):

Save this version of your schema compare and check it into source control. Then in the future if you want clear your overrides you can simply do an Undo Checkout from source control, or choose not to Save your Schema Compare when you close it.

VSDB: Tracking down Deploy errors

I’m working on a project that has thousands of lines of post-deployment scripts. Once I have done a successful build, I still sometimes get errors in the deploy, usually indicating a problem in one of my post-deployment scripts. Unfortunately, Visual Studio Database Edition rarely gives me enough information to easily identify the location or source of the error.

I believe the problem is two-fold. First off, any output from PRINT statements that may help you locate the error might be useless – I believe that the PRINT output is buffered and that when the error occurs, the buffer might not be flushed. So there may still be a bunch of PRINT output between what you see and when the error really occurs (hey, if anyone from the VSDB team is reading this, please fix this in VS.NET 2010!). The second problem is that VSDB does not locate the error for you and tell you which file and what line the error is on. That’s probably because it concatenates all of the post deployment scripts together with the database creation script into one huge SQLCMD file.

So, what's a developer to do?

Once of the fastest ways to figure out the issue is to leverage another tool that will show you ALL of the PRINT output as well as tell you what line of code the error occurs on: SQL Server Management Studio.

When you do a deploy, VSDB creates a big script that creates the entire database – this script also includes all of the contents of the post-deployment scripts. You want to run this script in SSMS to find out where the error is. Then, find that same piece of code in the project (probably in the post-deployment scripts section). Hopefully you will quickly recognize it once you see it.

Here's what to do:

1. Locate the database project's folder (your working folder on your PC). If you're not sure you can find it here:


2. Navigate to the "sql" folder:


3. Then navigate to the folder corresponding to the Build Configuration you used, e.g. "debug":


4. Find the .sql file that matches the name of your deployment database (you specified this in your database project's properties' Deploy tab at some point, otherwise it might default to the name of the project):


5. Open that file in SQL Server Management Studio.

6. Note that this .SQL file is a "SQLCMD" file, using special syntax with commands that start with ":" to set variables etc. Don't worry about this too much, but once the script is open in SSMS, be sure to toggle on SQLCMD in the Query menu:


7. Make sure you are connected to the correct SQL Server\Instance before you run the script. It will probably drop and re-create the database you had specified, just like the Deploy command would, so keep that in mind. Note that you can tweak a couple things if you want – changing the DatabaseName variable for example, and removing the specification of the MDB/LDF file names from the database creation.

8. You can now run the script (F5).

9. Now hopefully you will get the same error message again, but this time when you double-click on the error message you will get to the exact script line that is causing the error, so that you can correct it in the project. Also, you will probably get all of the PRINT output leading up to that, which may help.

VSDB: Deployments

Over the course of working on a couple VSDB projects with multiple developers, I have found that productivity loss and confusion can result from developers’ settings producing unexpected results during a deploy – for example, having some changes to the database project in source control not get applied to the developer’s database; or the developer deploying to a different database than expected.

I have found that the following settings provide consistent results.

For the Database Project, edit your settings (right click the Database Project and select Properties):

Now make sure you UNCHECK "Block incremental deployment If data loss might occur" (shown checked here)

CHECK "Always re-create database" and of course "Back up database before deployment“.

These settings will ensure that your local development database is always exactly what is checked into source control – nothing less and nothing more. That should help avoid issues where one developer inadvertently undoes the changes of another developer, etc.

Using Visual Studio Database Edition (VSDB)

Database Edition is designed so that each team member works with their own isolated database. Some folks will also be making changes to the database, and others may not be.

If you are planning to make changes to the database, here are the steps I recommend:

1. Check with other team members to see if you might be changing some of the same objects or not. Coordinate so that you do not overwrite each other's changes.
2. Get latest version of at least the database project files from source control.
3. Update your database from the latest database project files. There are a couple ways to handle this. Let's assume you do NOT have any changes or data in your database that you need to keep. Simply do a DEPLOY of the database project to get the latest version. (If you do have changes you need to keep, then skip to Step 5 and be VERY careful about what you sync up.) If you are not sure, you can run a schema compare to see the differences.
4. Make your changes.

5. Sync your changes back to the project.

   1. Run a Schema Compare

      1. Source: your isolated DEV database
      2. Target: Project
      3. Options: see my previous email and sure the correct Object Types are being ignored

   2. Carefully review the Schema Compare output

      1. Filter to Non-Skip Objects

      2. Scroll through the list of Objects

      3. For any objects that you did not intend to change, delete, or add, change the Update Action to Skip

         1. Be sure that you are not deleting stored procs, etc., that someone else recently added – e.g. if you have done another Get Latest Version on the database project since you deployed your isolated database
   3. Write Updates to the target – this will update all non-skip items you reviewed above

6. Check In your changes to the Project in
7. Let the team know that you checked in database changes and what they might affect. The team may need to update other code and get your changes before they make DB changes.

Problems are likely to occur if folks get careless about reviewing schema compare output and what will get updated. For example, let's take the following example:

1. Person A gets latest and deploys
2. Person B gets latest and deploys
3. Person A creates new proc MyProcA, syncs back to the project, and checks in
4. Person B creates new proc MyProcB

5. Person B does schema compare to project (maybe a get latest version happened in the project, too – for example, by adding a new object the solution file will need to be checked out)

   1. NOTE: Schema compare will want to ADD MyProcB and DELETE MyProcA (because MyProcA does not exist in Person B's isolated database)
6. Person B ignores output and does Write Updates and then Checks In … now MyProcA has been removed from the project

So that's more or less why the steps outlined above are in general good practice and will hopefully keep you out of trouble.

Also note that Scripts are not touched by Schema Compare (e.g. post-deployment scripts which seed data).

For more reading… (this is from the DB edition documentation, available at):

http://msdn.microsoft.com/en-us/library/aa833404(VS.100).aspx

Or download the whole doc at (see Documentation.zip at the end in the Downloads section):

http://www.microsoft.com/downloads/details.aspx?FamilyID=bb3ad767-5f69-4db9-b1c9-8f55759846ed&displaylang=en
